Ansible Project

Ansible Project

Ansible playbooks are amazing, as you learned yesterday. What if you deploy a simple web app using ansible, sounds like a good project, right?

Task-01

  • Create 3 EC2 instances . Make sure all three are created with same key pair

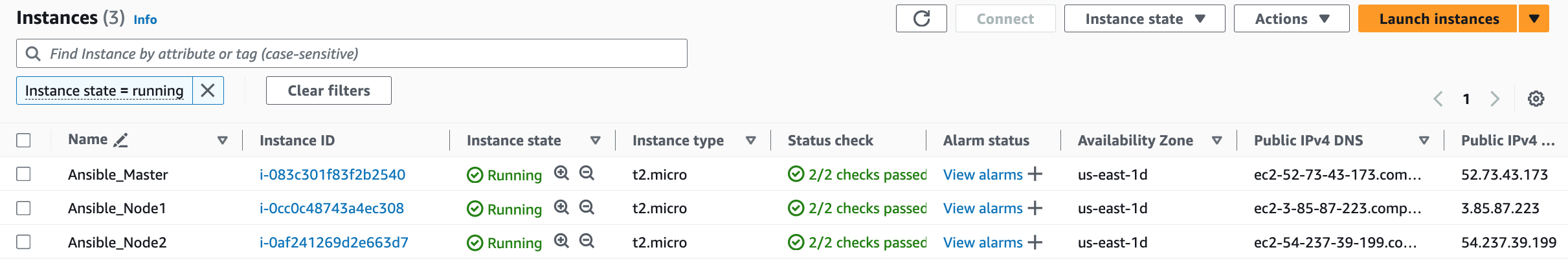

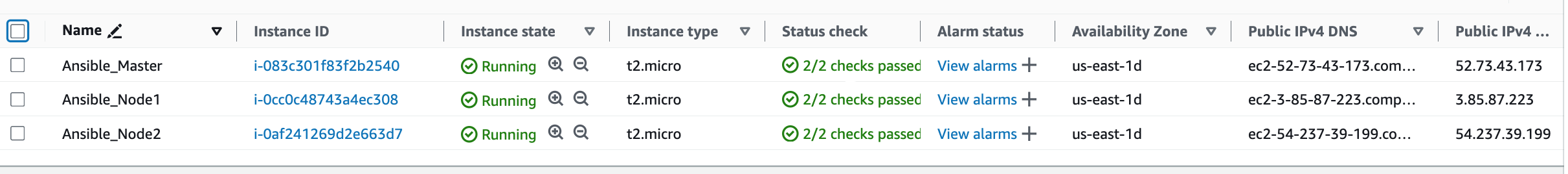

Launch 3 EC2 Instances with the same Private key pair, one will be the Ansible master and the remaining two will be nodes ( Ansible_Node1 and Ansible_Node2).

  • Install Ansible in host server

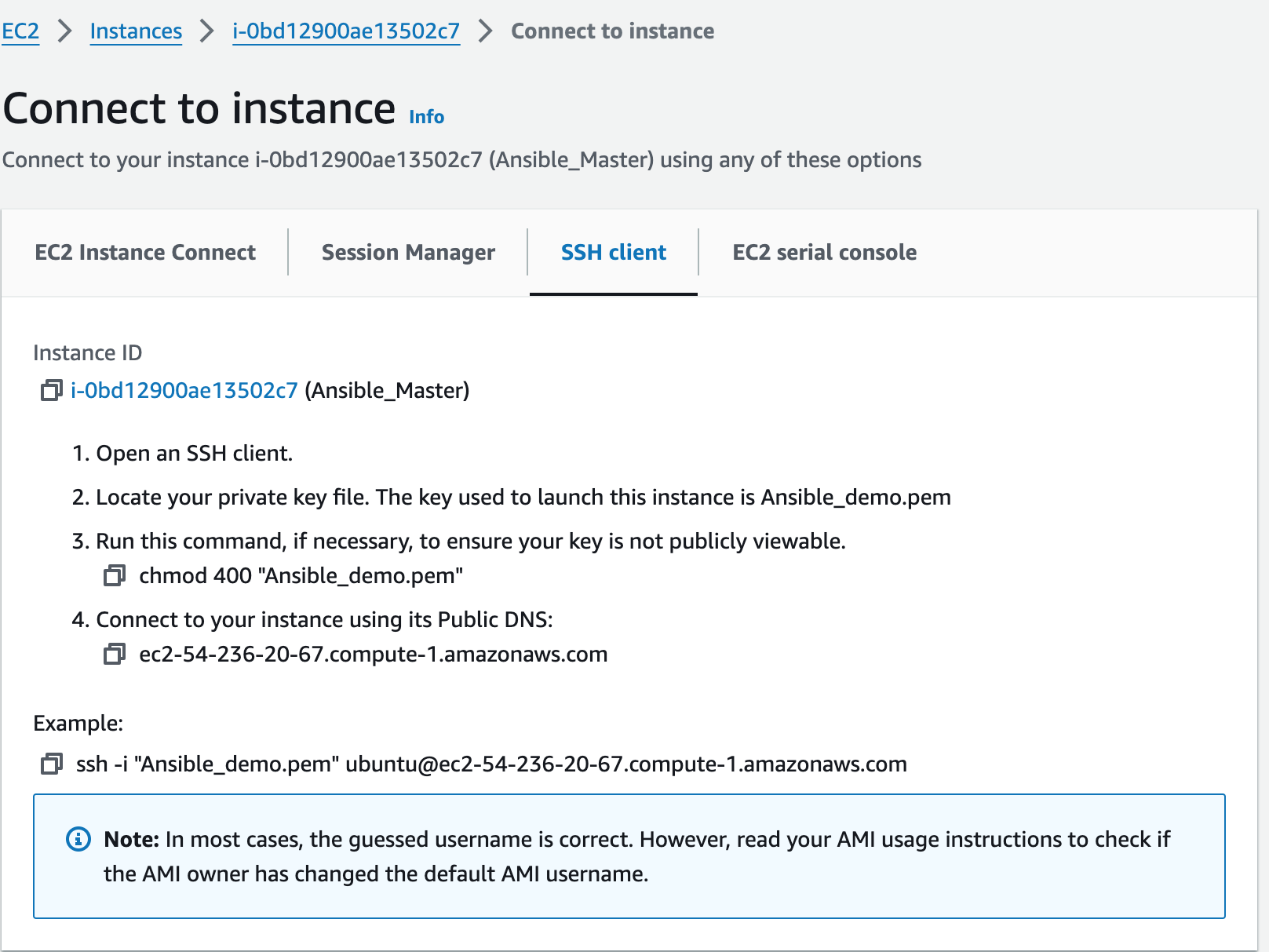

Connect to Your EC2 Instance using SSH

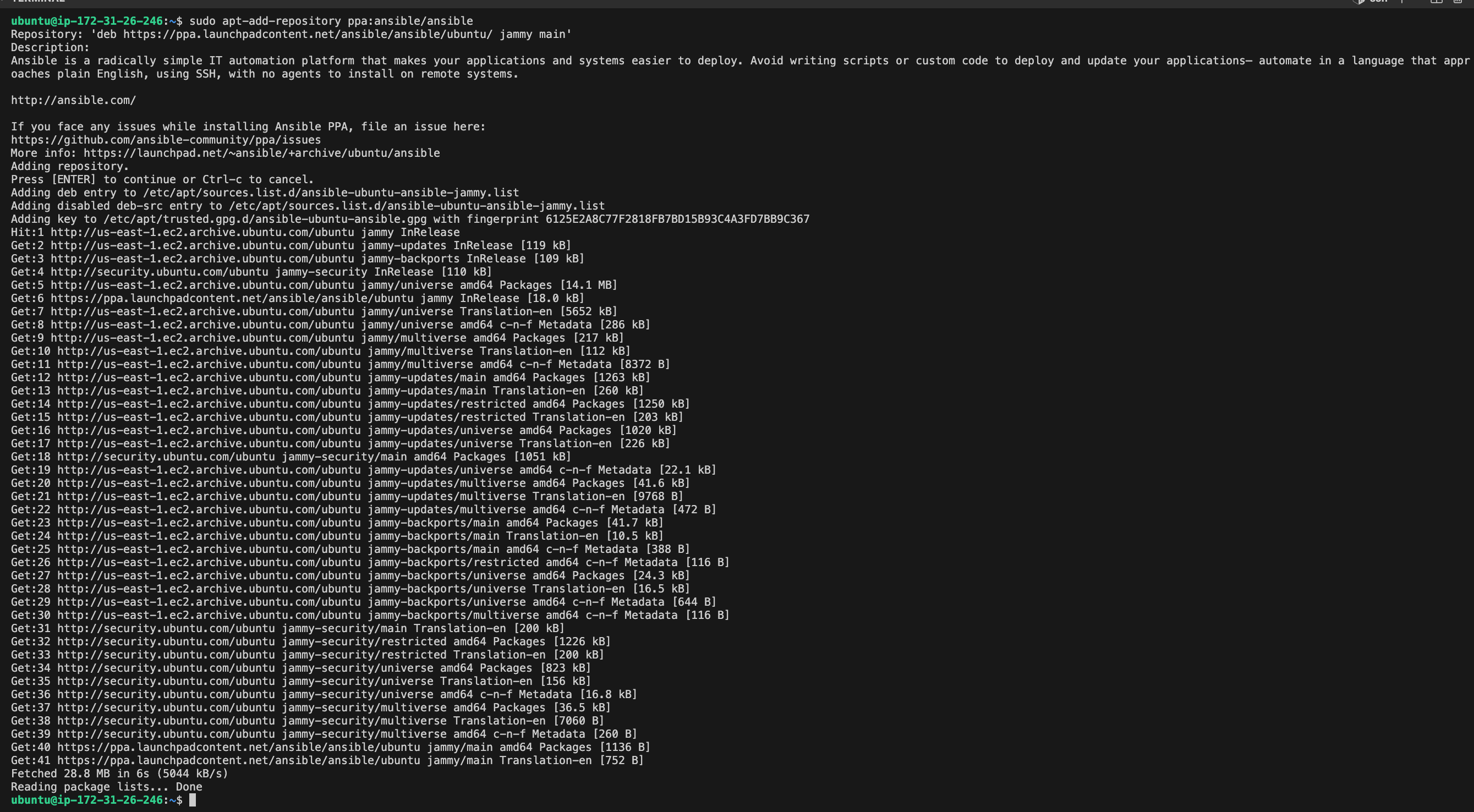

Add the Ansible PPA (Personal Package Archive) to your instance

sudo apt-add-repository ppa:ansible/ansible

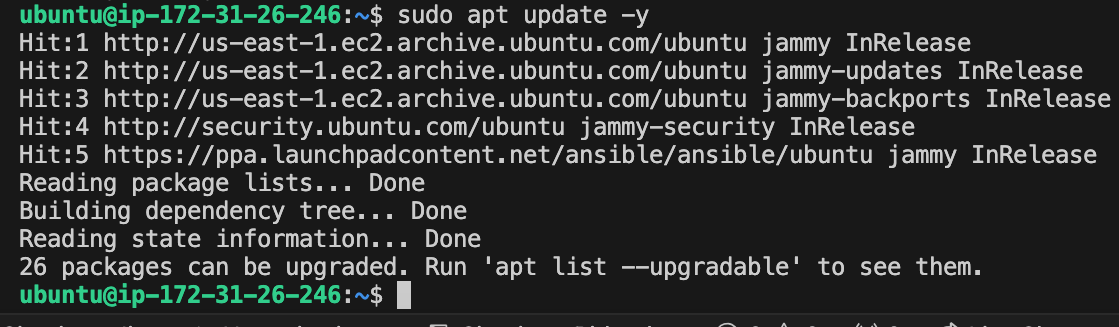

Update System Packages

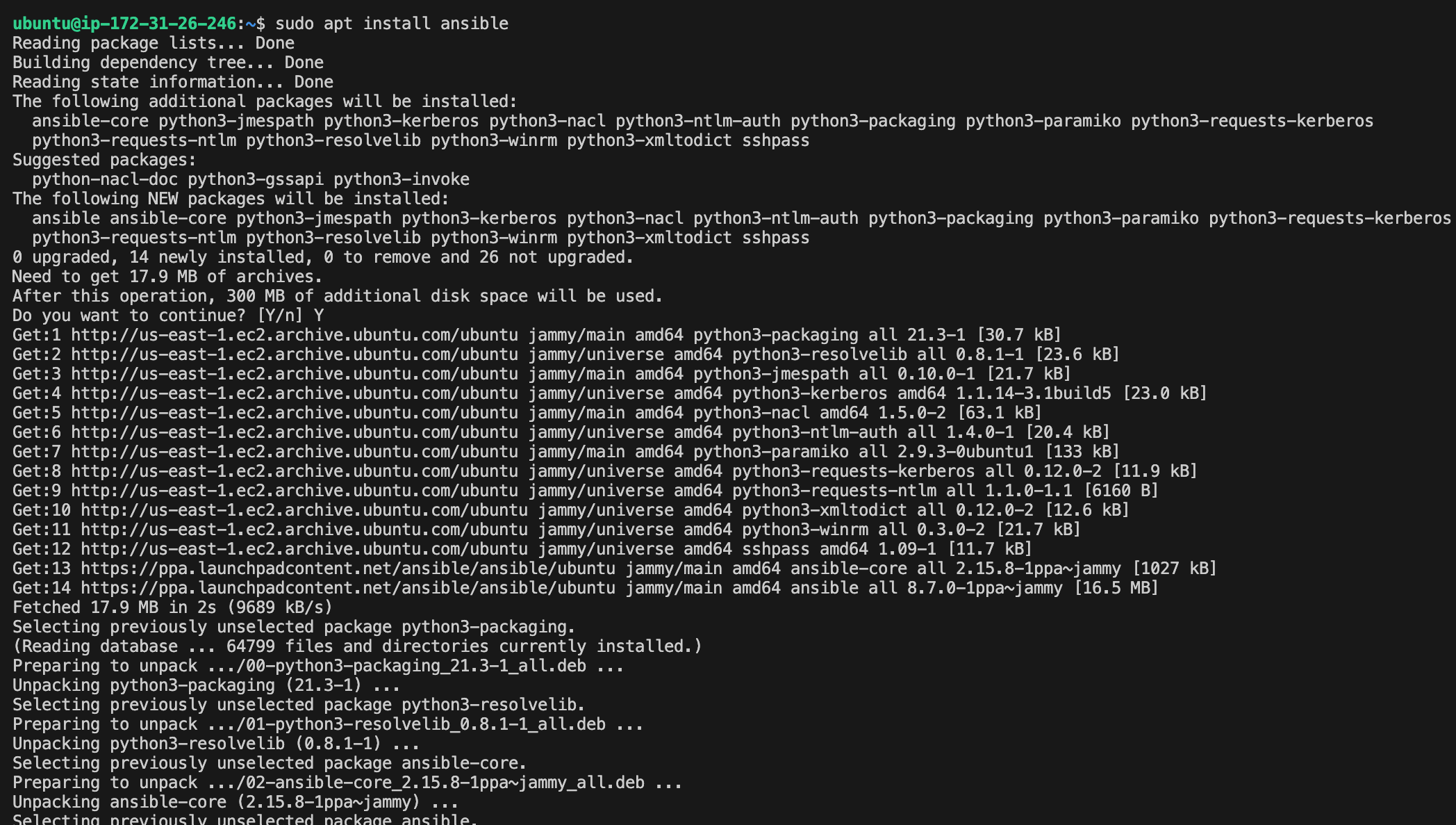

Install Ansible

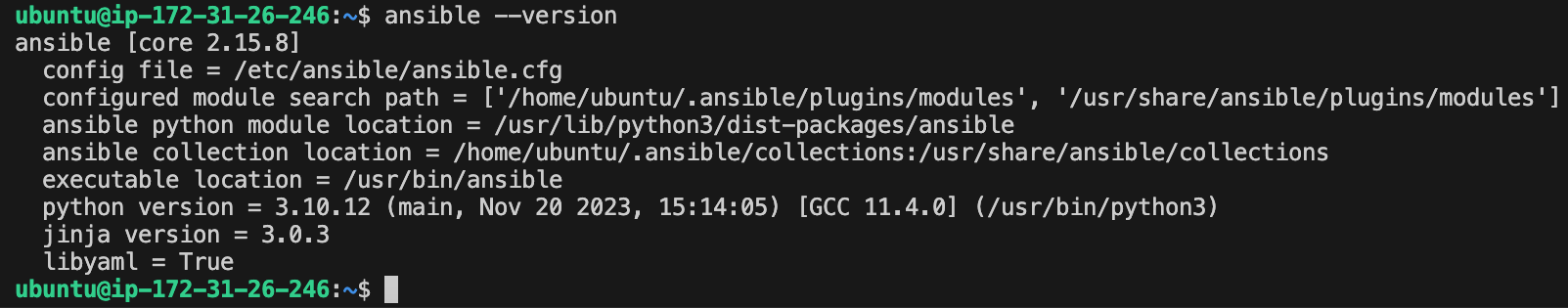

Verify Ansible Installation

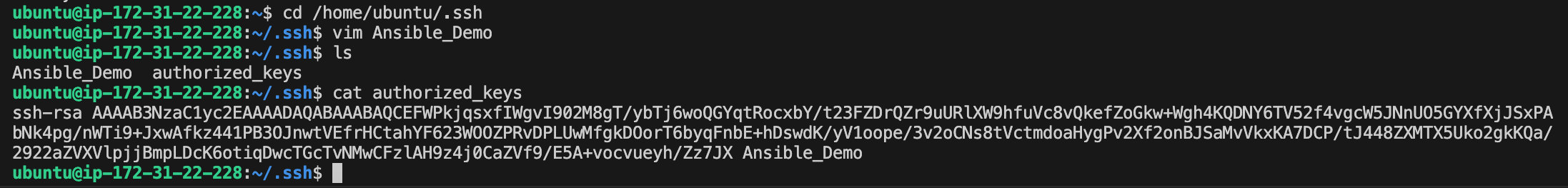

  • Copy the private key from local to Host server (Ansible_host) at (/home/ubuntu/.ssh)

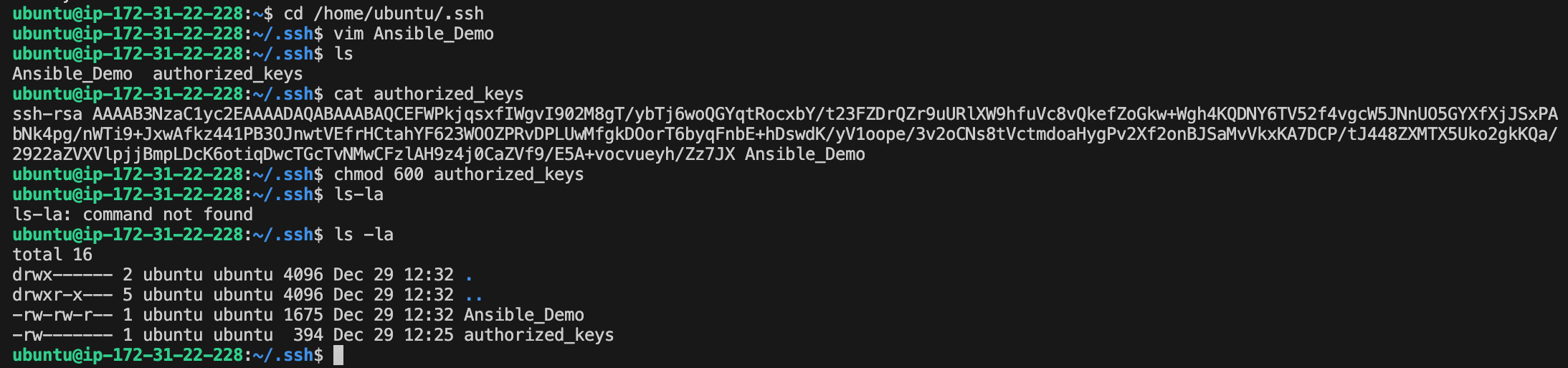

Now, copy the private key pair from the local to the host server (Ansible master) at /home/ubuntu/.ssh and paste the private key in the file

Copy the private key from your local.

Give permissions to the private key file using chmod command.

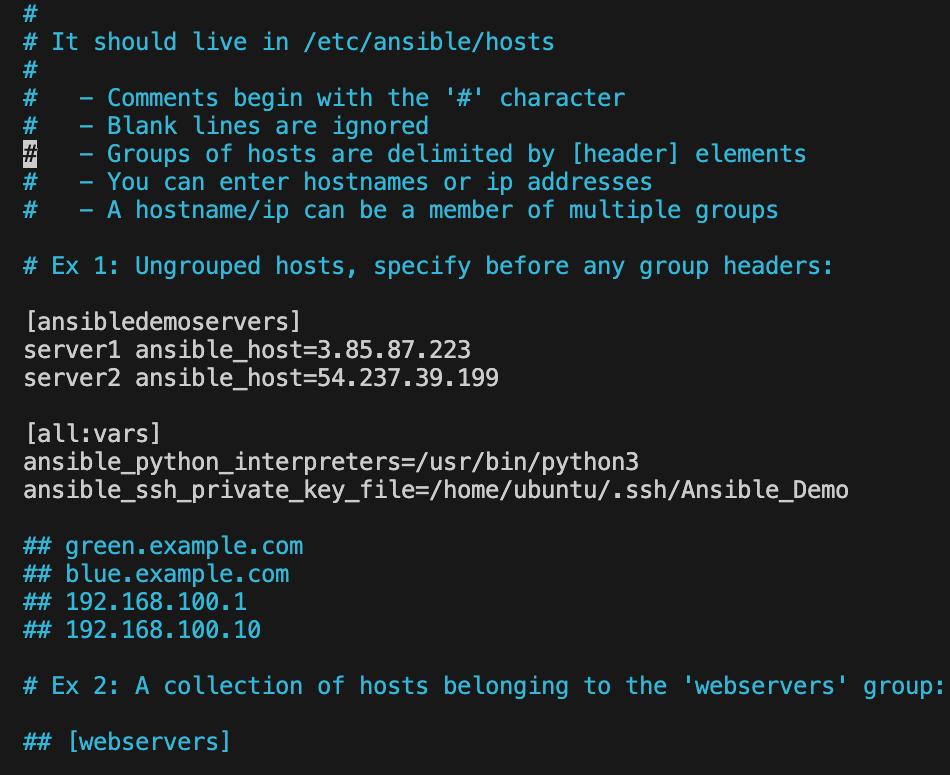

  • Access the inventory file using sudo vim /etc/ansible/hosts

Create inventory file at location /etc/ansible/hosts which is by default location of the file. An Ansible hosts file is a configuration file that contains a list of hosts or servers. Add the IP addresses of the servers and also add private key file locations to use for authentication.

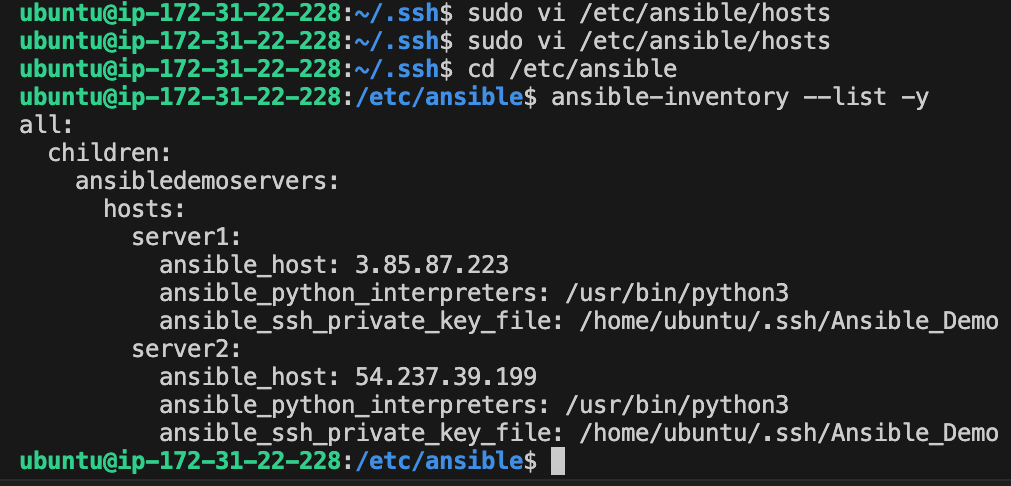

Use ansible-inventory --list -y to check the list of hosts

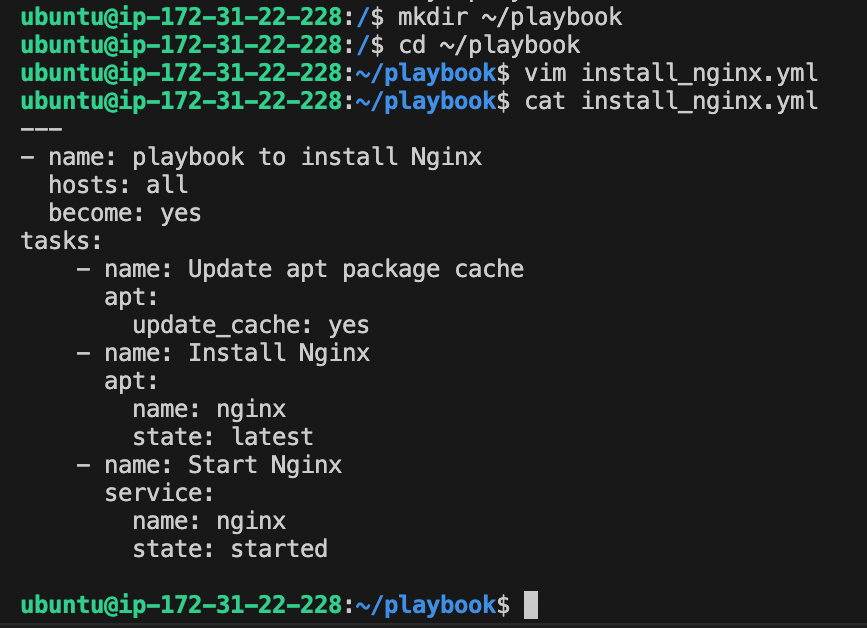

  • Create a playbook to install Nginx

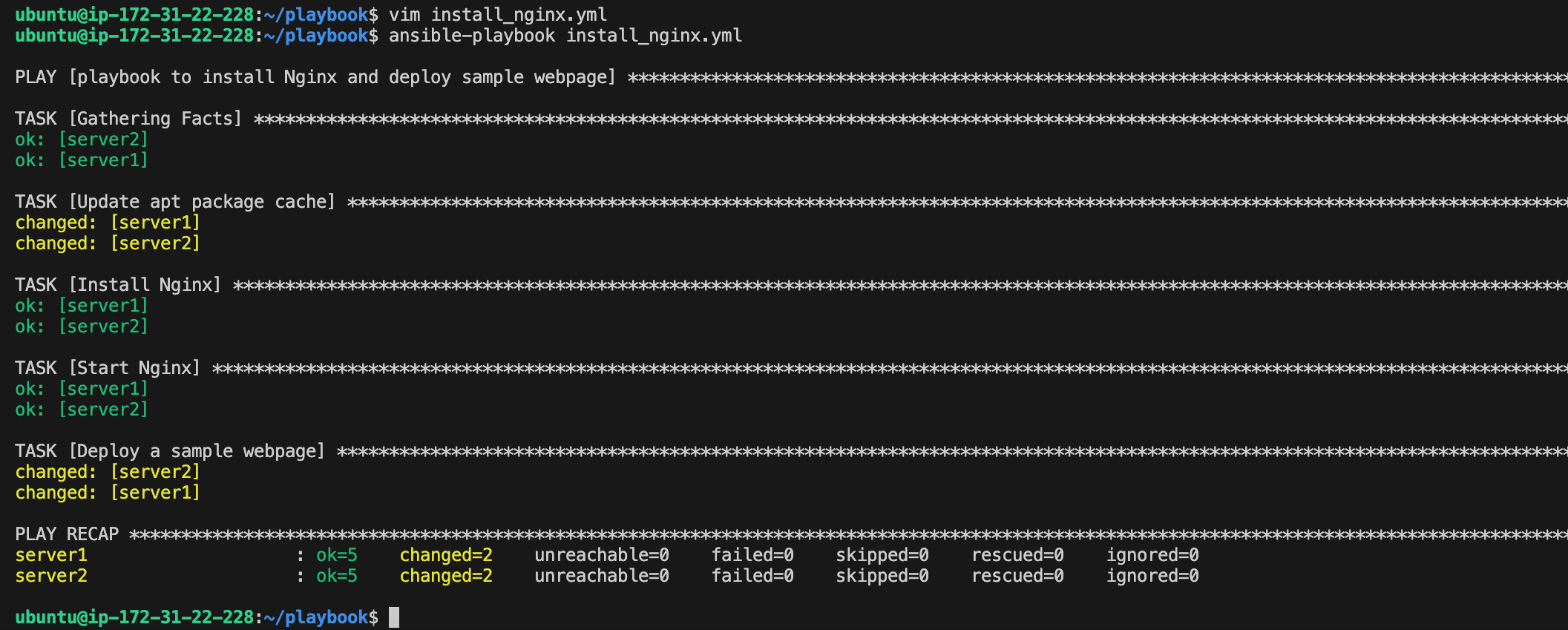

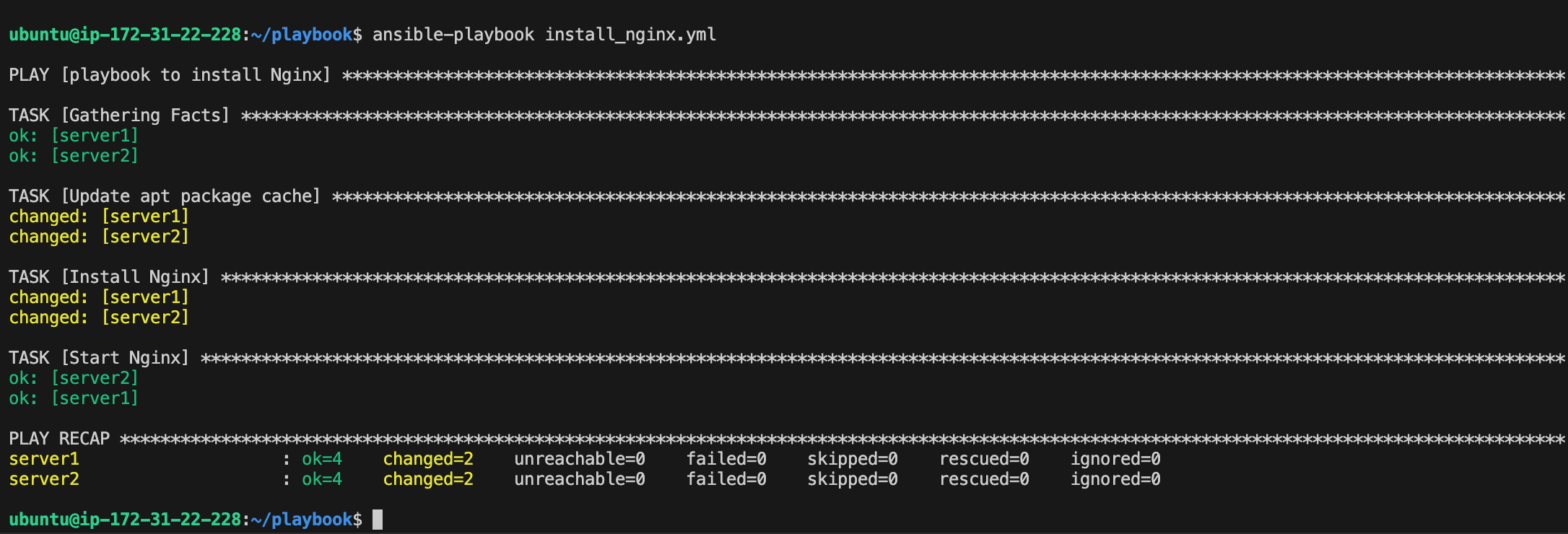

Run the playbook using ansible-playbook command.

ansible-playbook file-name.yml

  • Deploy a sample webpage using the ansible playbook

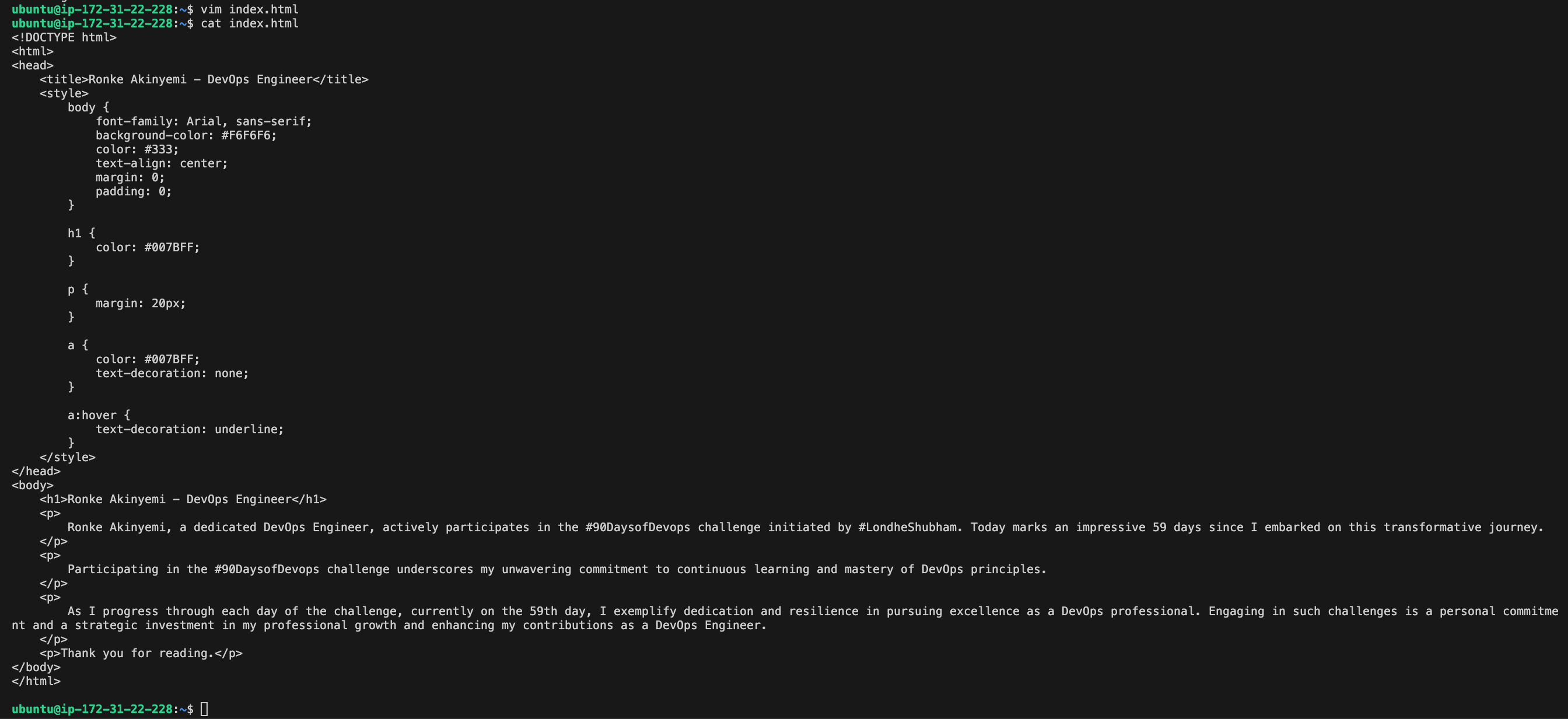

Create a new file index.html in the playbook directory, and add some content

Update the Ansible playbook file install_nginx.yml in the playbook directory by providing the index.html file path, and the destination will be the default Nginx web server document root directory at /var/www/html/.

---
- name: playbook to install Nginx and deploy sample webpage
  hosts: all
  become: yes

  tasks:
    - name: Update apt package cache
      apt:
        update_cache: yes

    - name: Install Nginx
      apt:
        name: nginx
        state: latest

    - name: Start Nginx
      service:
        name: nginx
        state: started

    - name: Deploy a sample webpage
      copy:
        src: /home/ubuntu/index.html
        dest: /var/www/html/
      become: true
      become_user: root
      become_method: sudo

This playbook will copy the index.html file to the default Nginx web server document root directory at /var/www/html/.

After successfully running the Ansible playbook, launch a web browser and navigate to the public IP address of any of the EC2 instances where Nginx is running.

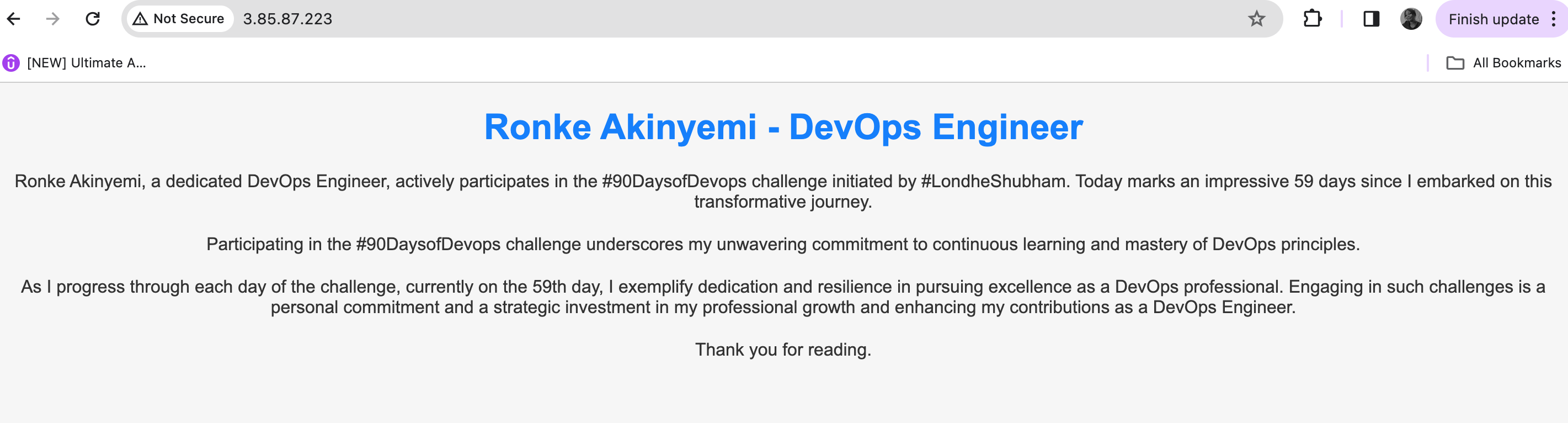

Server1

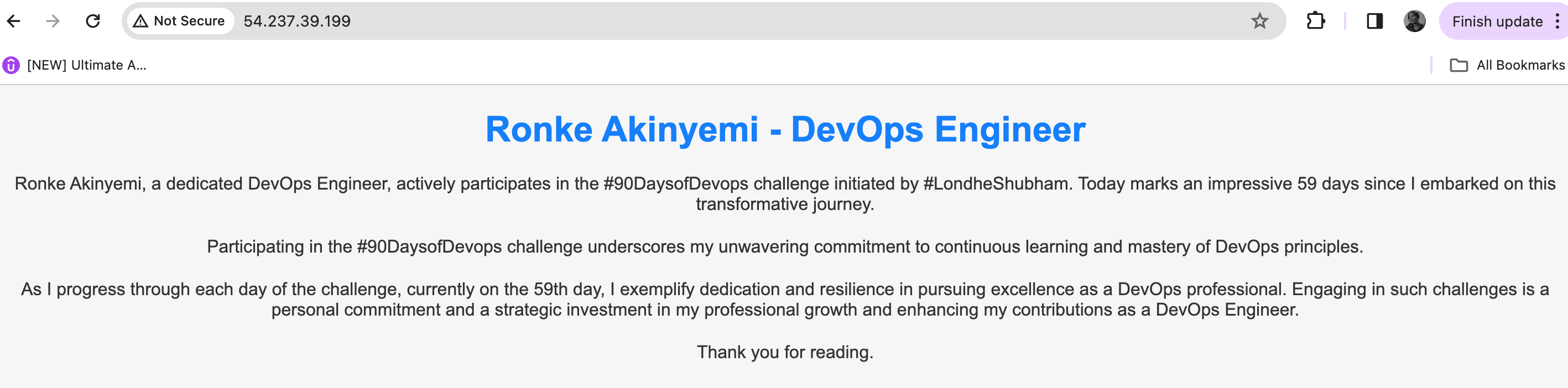

Server2
